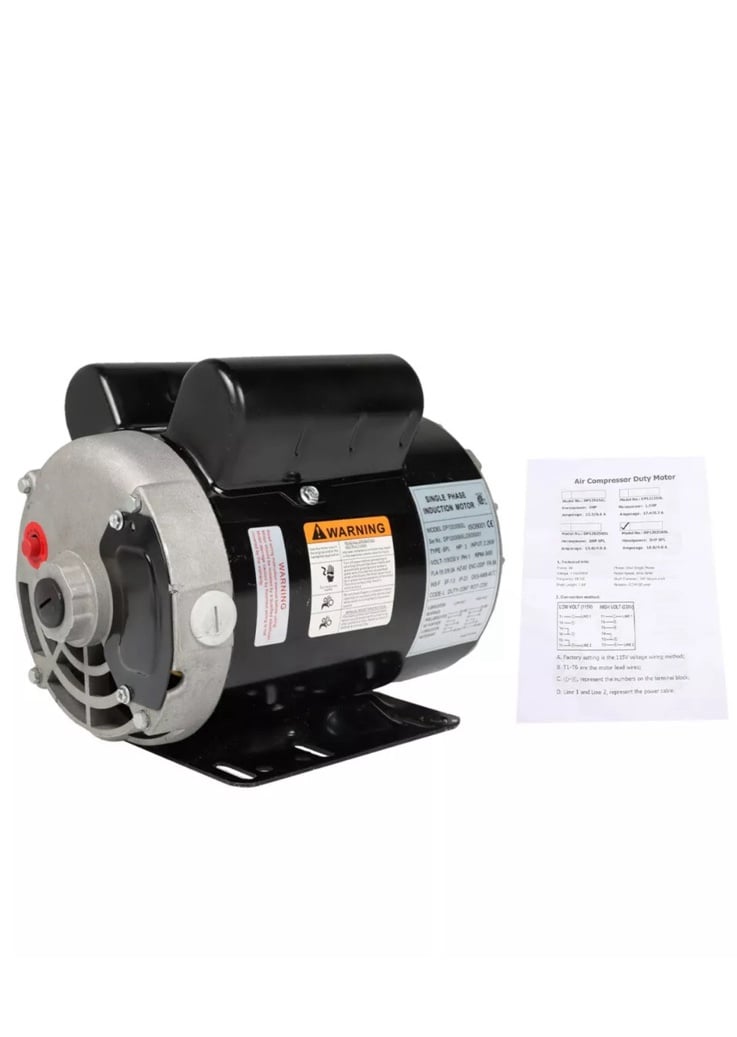

3 HP 3450RPM Electric Motor Compressor Duty 56 Frame 1Phase 115-230V New
4.6 (23 items)
Limited Time Sale$58.25 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 1882068 | Release Date | 2025/07/08 | List Price | $108.19 | Model Number | 1882068 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
3 HP 3450RPM Electric Motor Compressor Duty 56 Frame 1Phase 115-230V New
Specification：
Model: CM03256
Type: SPL
Input: 2.2 kW
Horsepower: 3 HP SPL
Voltage: 115/230V
Phase: Single Phase, 2 Pole
Amperage: 18/9A
Rated Speed: 3450 RPM
Frequency: 60 Hz
Synchronous Speed: 3600 RPM
Frame: 56 Frame
Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
Shaft Length: 1.875 in / 4.8 cm
Rotation: CCW
Service Factor: 1
Efficiency: 80%
Insulation Class: F
Mounting Type: Base-Mounted
Enclosure Type: ODP (Open Drip-Proof)
IP Rating: IP 23
Current Type: AC
Single Phase Electric Motor
Feature：
Single Phase Electric Motor: This air compressor electric motor runs at 3 HP SPL. Rated Speed: 3450 RPM, Input: 2.2 kW, Voltage: 115/230V, Amperage: 18/9A, Frequency: 60 Hz, Synchronous Speed: 3600 RPM, Frame: 56 Frame, Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft, Shaft Length: 1.875 in / 4.8 cm, Rotation: CCW. Push your air compressor to the limit
